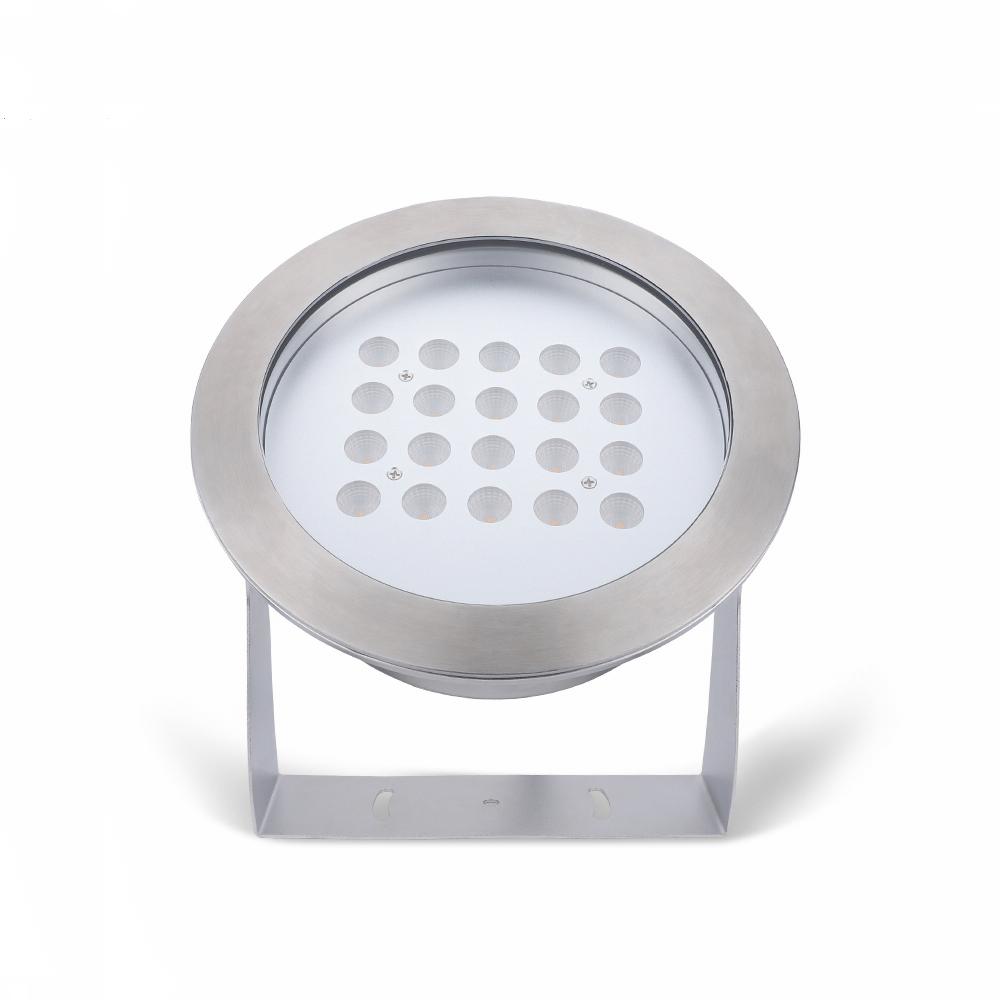

SPD22520X

Stainless steel LED underwater spot light

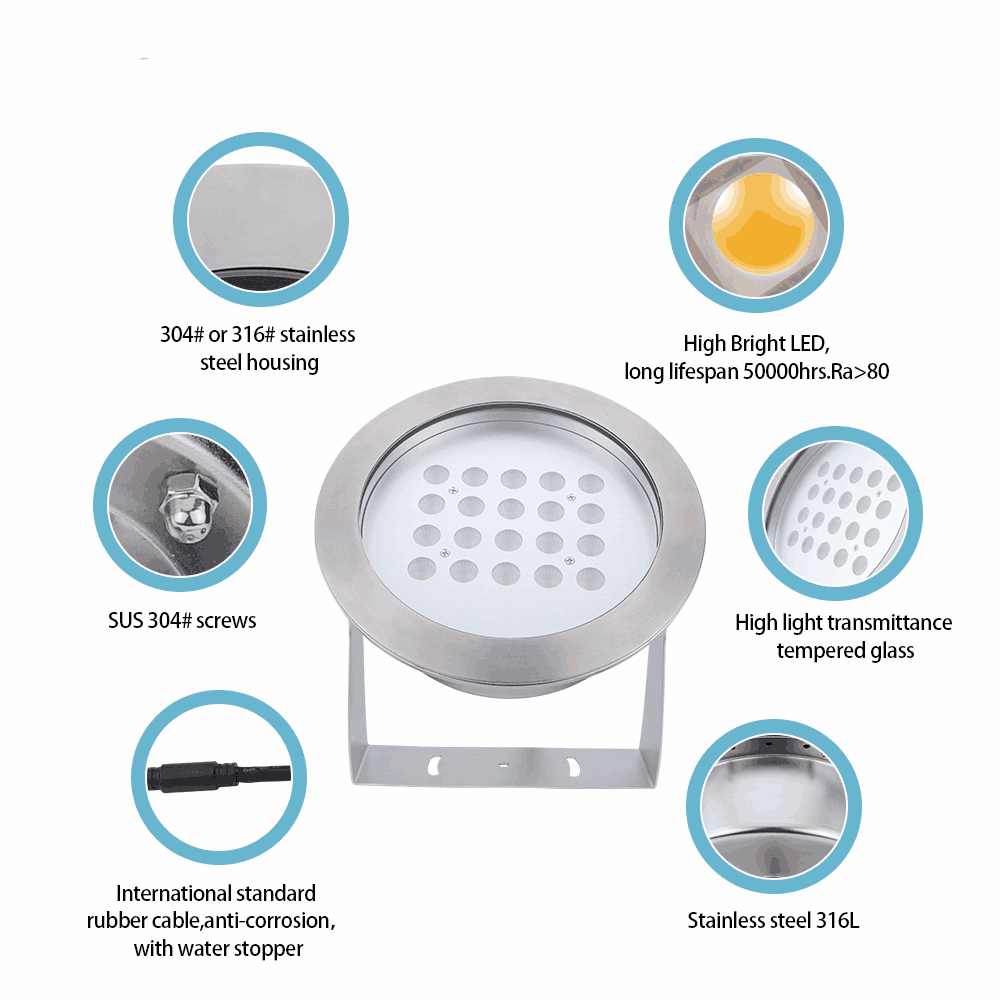

-Housing: Molding shaped 316L stainless steel
-Bracket:SS304 or 316L
-Front cover:Stainless steel SUS304 or SUS316L
-Glass:Step tempered glass T=8mm
-Lens:High quality optical lens,efficiency≥85%
-Cable: IP68 PG11 copper and nickel coated
-LED:High power LED
-PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
-Driver:Constant current design
-Gasket:Silicone gasket
-Application environment:Temperature of water between -20℃-40℃ less than 1.0 meter depth.
