1.USe high performance LED,CRI>80/90

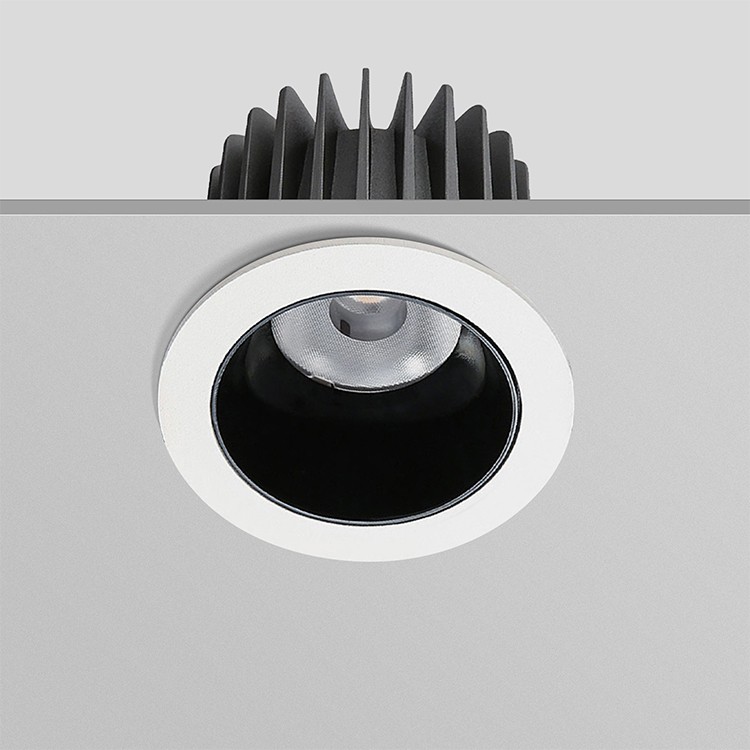

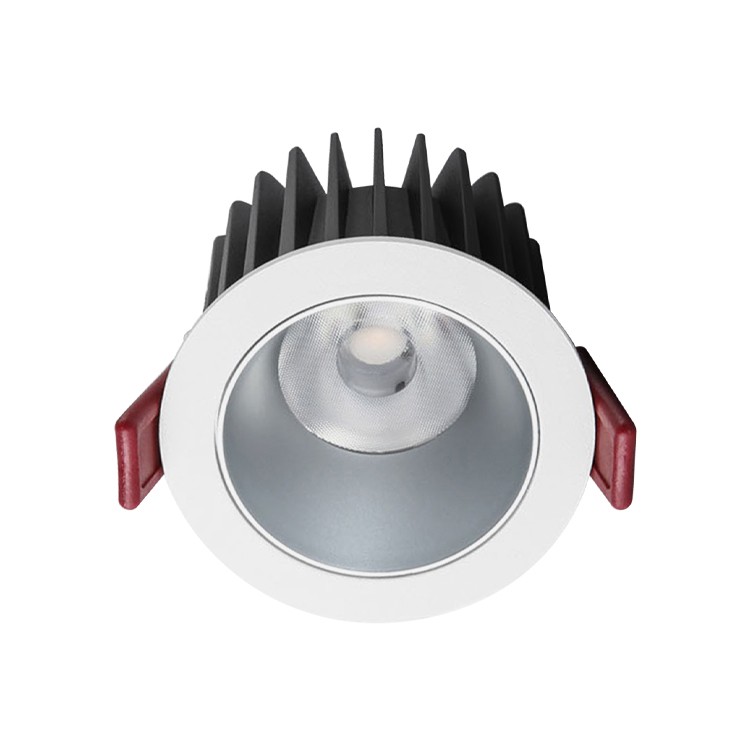

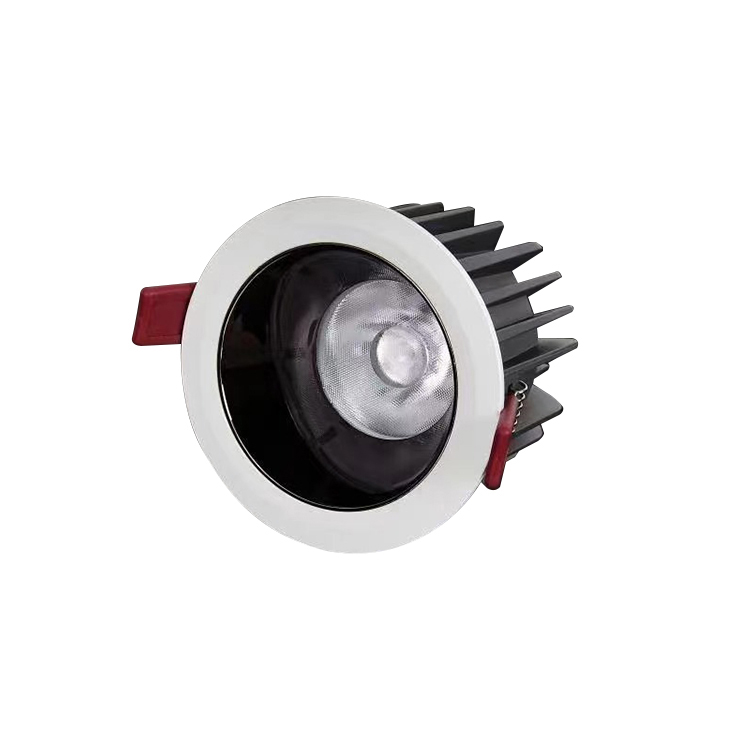

2.Aluminum heat sink and unique Die casting heat sink design ensures good heat dissipation.
3.LED source Osram or San'an can be optional.
4.Driver brand can be optional
5.Application: Direct replacement for luminaires with compact fluorecent lamps,general illumination,public areas,stairways,corridors,foyers,shops
Item No. | IBSP106 |
Wattage | 8W/12W/20W/30W |
CRI | 80/90 |
CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
Beam angle | 15/24/38 |
Lumen | 880lm/1320lm/2200lm/3300lm |
Finish | Matt white trim |
IP rating | IP20 |
Material | Die-casting alu.trim and heatsink,PMMA lens |
Driver | Constant current remote LED driver included |
Product Size | Φ66*H60mm for 8W Φ83*H72mm for 12W Φ107*H87mm for 20W Φ135*H89mm for 30W |
Cutout size | Φ 60mm for 8W Φ 75mm for 12W Φ 95mm for 20W Φ 115mm for 30W |
LED source | COB, CREE/BRIDGELUX |
Input Voltage | 220-240vac/100-240vac |
Diming | Non Dim/Triac/0-10V/Dali Dim |
