1.USe high performance LED,CRI>80/90
2.Aluminum heat sink and unique Die casting heat sink design ensures good heat dissipation.
3.LED source Osram or San'an can be optional.
4.Driver brand can be optional
5.Application: Direct replacement for luminaires with compact fluorecent lamps,general illumination,public areas,stairways,corridors,foyers,shops
Item No. | IBDL244 |
Wattage | 5W/7W/9W/12W |
CRI | 80/90 |
CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
Beam angle | 100 degree |
Lumen | 500lm/700lm/900lm/1200lm |
Finish | Matt white |
IP rating | IP20 |
Material | Die-casting alu.trim and heatsink,PMMA lens |
Driver | Constant current remote LED driver included |

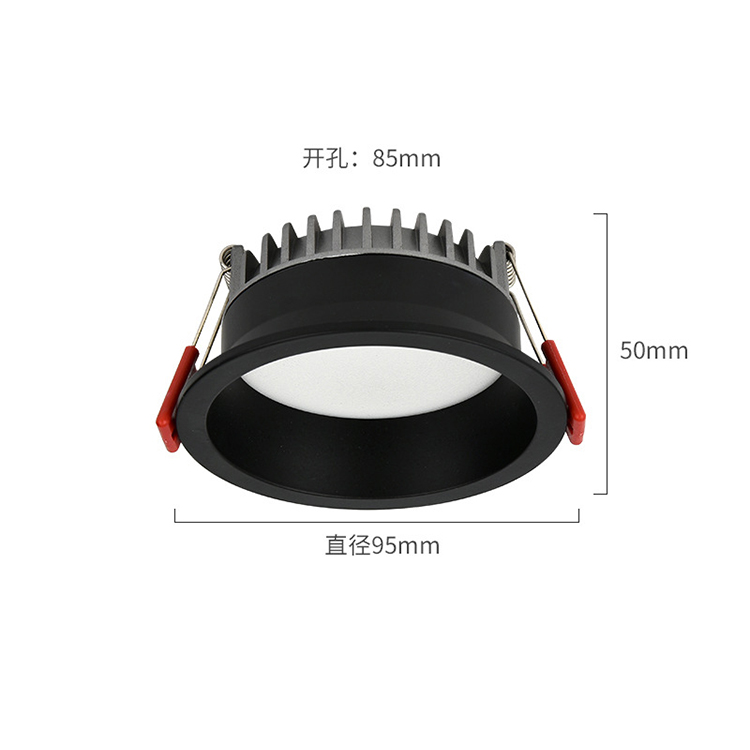

Product Size | Φ85*H50mm for 5W Φ95*H50mm for 7W Φ102*H56mm for 9W Φ124*H56mm for 12W |
Cutout size | Φ 75mm for 5W Φ 85mm for 7W Φ 90mm for 9W Φ 115mm for 12W |
LED source | SMD2835, Sanan/Osram |
Input Voltage | 220-240vac/100-240vac |
Diming | Non Dim/Triac/0-10V/Dali Dim |
